Clientside performance no priority for Dutch websites

By crisp on Monday 4 January 2010 02:10 - Comments (28)
Categories: Tweakers.net, Webdevelopment, Views: 10.474

As a senior developer at Tweakers.net and being specialized in frontend development I always take clientside performance very seriously. Even if your backend code is optimized to the bone, a slow rendering frontend can still spoil the whole experience for your visitors, and a bad first impression will make your visitors go elsewhere. A couple of recent articles on some other Dutch ICT-centered newssites made me wonder if they are taking clientside performance just as seriously.

Making a website fast goes far beyond trying to minimize the total size (in terms of kilobytes the client has to download) of an average page, but it still is a good start to try to reduce some overhead. If any page, and especially the frontpage of a website where a first-time visitor with an empty browsercache is most likely to 'enter', is already more than a megabyte in size than you're absolutely doing something wrong. Even these days where most people are on broadband connections downloading a megabyte still takes a measurable amount of time. Especially given the fact that it's not only the bandwidth that defines the total amount of time needed to download all resources for a page, but also the number of items that have to be downloaded (browsers can only download a limited number of items from a given host in parallel), added time for DNS-lookups, roundtrips, TCP and HTTP overhead, reducing the total size of required resources already improves the users' experience (especially for those that are not on a broadband connection).

Even when the download time for all resources may seem small, you have to take in mind that the client also, depending on the type of resource, needs to parse, compile and execute and/or render those items, which may in total take even more time than the download time itself. So that makes two reasons to reduce the 'footprint' of your site, especially if that can be done without any negative sideeffect. That brings me to the first example I came across recently where clientside performance obviously is not being taken seriously by one of our colleague-ICT-newssites:

Webwereld.nl

Webwereld recently featured an article with the most 'hilarious' emails they received over the past year. One of those emails read (translated): "Congratulations on your new site, but can I have the old site back? This new site is terribly slow; it's like I'm on a 14K4 modem again..." (Webwereld did a frontend redesign in 2009).

Now I don't see anything hilarious in that email; complaints from users about your site being slow should be taken seriously. Even if it is just a perceived notion of reduced performance (which is not uncommon with users after a complete redesign) you should be able to explain that. However, in this case and with my knowledge of their site before the redesign, the user complaining is probably right; the site's performance did suffer from the redesign and there are various points that cause it, all of which could be avoided or improved.

First of all, webwereld seems to use two different javascript frameworks, both of which are included on almost every page: prototype+scriptaculous (total of 8 requests loaded from ajax.googleapis.com) and jquery (loaded from googlecode.com - not http-compressed). And it's not even the fact that they are using those libraries, but more that they are hardly using any of the features of those libraries; they could have easily written their own scripts in such way that they didn't have to use any library.

Secondly, allmost all of the images they are using in their interface can be reduced to much smaller filesizes. Using the "smush-it' service I could reduce for instance http://webwereld.nl/images/inputFieldBg.jpg from 22.2K to 829 bytes, and that goes for most images webwereld is using for it's interface. This is most certainly an oversight.

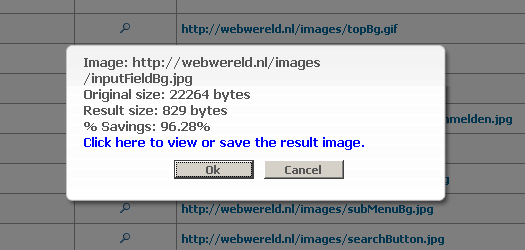

http://tweakers.net/ext/f/qqoHsJEpeu9sqRhyFIZ99IPS/full.png
Easy win: reduce filesize of static images using Smush.it

Thirdly, the number of 'tags' for advertising certainly increased after their redesign. It's no secret that 2009 has been a bad year for advertising on websites, so trying to increase advertisment income by creating 'special' bannerpositions is a means of getting more advertisers for your site. However, increasing the number of bannertags will not get you any more banners than those that are being sold. At Tweakers.net we actually try to match the number of bannertags created to the number of banners that are actually sold; 9 out of 10 views on our frontpage don't get any bannertags at all.

Advertising

Advertising actually has a huge impact on clientside performance; it's not only the number of bannertags, which are mostly inline javascript-based and thus 'locking' page rendering by the browser, it's also the obtrusiveness and other characteristics that degrade the users' experience such as huge downloads (sometimes complete movies that start playing without interaction), poor response times from adservers and a large numbers of requests and redirects. A prime example of the latter is the implementation of in-text advertising on Techzine.nl which needs 12 HTTP request, and a total of 79KB (263KB uncompressed) worth of resources just to underline a couple of 'keywords' in an article which, when hovered over, will present a popup which will (notably slow) present you with advertised links. It's not surprising that almost half of their userbase, by means of the poll with the article, declared to "turn the 'feature' off" - which fortunately is an option given to Techzine's registered members.

update: Coen van Eenbergen from Techzine notes that Techzine is no longer using this type of advertising because their users massively disapproved of it. A nice detail is that Webwereld has also in the past experimented with this type of advertising. Tweakers.net did something simular back in 2004, but that was an April fools' joke...

YSlow

So how are other major Dutch websites doing in terms of clientside performance? To be able to determine that I decided to use the YSlow tool on the most populair websites in the Netherlands (which includes Tweakers.net of course):

SiteYSlow grade (points)Frontpage size (empty cache)Frontpage size (primed cache)# requests (empty/primed)
anwb.nlC (72)520.2K19.9K27 / 26
monsterboard.nlE (58)577.7K126.8K71 / 24
hyves.nlD (68)1068.5K89.5K120 / 9
youtube.nlC (78)210.7K88.5K27 / 20
ing.nlD (68)188.0K18.5K40 / 40
zylom.comE (57)1085.3K57.6K157 / 36
smscity.comD (69)569.0K20.7K45 / 2
vananaarbeter.nlD (64)212.6K13.4K32 / 32
nu.nlD (69)413.2K80.3K67 / 66
scholieren.comC (77)214.8K6.6K45 / 8
google.nlA (97)30.9K4.5K4 / 1
ibood.nlB (80)146.1K2.2K19 / 18
psv.nlE (56)1463.5K162.3K93 / 91
funda.nlB (80)89.3K5.9K14 / 13
inpakkenenwegwezen.nlD (65)428.2K26.9K82 / 78
uitzendinggemist.nlD (60)502.8K88.8K139 / 67
kika.nlC (77)599.4K8.5K19 / 18
receptenweb.nlC (71)464.5K22.5K34 / 33
relatieplanet.nlC (70)165.1K82.5K40 / 40
tweakers.net/pricewatchB (80)295.4K19.4K69 / 1
buienradar.nlE (58)1182.6K410.4K71 / 63

and I'll add some other sites as well (including our own frontpage and my blogs' index :P):

SiteYSlow grade (points)Frontpage size (empty cache)Frontpage size (primed cache)# requests (empty/primed)
tweakers.netB (83)563.0K26.9K54 / 3
geenstijl.nlD (68)1409.9K256.5K50 / 49
telegraaf.nlE (54)1355.6K245.3K181 / 59
fok.nlC (71)1241.6K48.4K51 / 14
webwereld.nlD (62)547.5K150.4K94 / 36
crisp.tweakblogs.netA (99)28.8K3.9K14 / 1

notes

It should be noted that a small total size does not necessarily compute to a higher ranking; in fact: there are a number of background images on the frontpage of Tweakers.net that can easily be reduced to a smaller filesize (I already spanked our newsposters for that). It's the total number of necessary requests and the number of requests on return-visits that make our site better compared to most of the rest. I must be honest here and tell you that the Tweakers.net examples did not contain any bannertags, but since this is true for 90% of all visits to our frontpage I thought it is the most representative. As for all other figures: these are based on the first hit on those pages, so they may be off-balanced (although I do think that they are mostly representative).

The mystery of primed cache # requests

Some of you may have noticed that the number of primed cache requests for some sites almost equals the number of initial requests, but with a much smaller total download size. This is due to the cacheing mechanism that is being used for resources that only have an Etag header without a (far-future) Expire header. Etag is a mechanism that still requires the useragent to regularly check for updates of the resource wereas Expires tells the useragent that it doesn't have to check and just take the resource from cache untill it gets expired.

Conclusion

Considering the fact that it is possible to achieve a B-grade for a large dynamic website such as Tweakers.net anything less than a C-grade should be deemed sub-optimal. Most sites can improve their clientside performance with just some simple measures. It's a pity (even a shame maybe) most large Dutch websites aren't paying attention to that; in my opinion it should be a basic part of the development cycle of any (large) website.
